Epson i3200 & i1600 Printhead Manifold Adapter Cover: The Essential 15RepairAssemblySavingPrintShopsfrom15RepairAssemblySavingPrintShopsfrom1,000+ Printhead Replacements
By Wide-Format Hardware Engineering Team | Published for Printer Maintenance Technicians & Consumables Wholesalers
In modern digital printing-spanning DTF (Direct-to-Film) garment decoration, roll-to-roll sublimation, eco-solvent signage, and industrial UV flatbed manufacturing-the Epson i3200 (A1/E1/U1) and i1600 printhead series are the undisputed industry standards. Delivering 3200 nozzles across 8 ink channels with high-frequency piezo firing, these printheads represent significant capital investments (800–800–1,200 per unit).
However, during continuous industrial operation and routine maintenance, technicians frequently encounter a catastrophic yet easily fixable hardware vulnerability: manifold adapter cracking and gasket degradation.
The Hidden Printhead Killer: Cracked Manifolds & Degraded Gaskets
When print shops experience sudden print failures, 70% of non-piezo issues stem from the top manifold cover:
Broken or Cracked Ink Nipples : Frequent damper replacements exert physical torque on the plastic ink connector pillars, causing micro-fractures.
Air Ingress & Ink Starvation : Micro-cracks destroy vacuum negative pressure, causing continuous ink starvation and nozzle dropouts during high-speed printing.
Catastrophic Liquid Leaks to Circuit Boards : Ink pooling above the manifold seeps into the sensitive FPC ribbon cables and mainboard circuitry, instantly frying both the printhead and the printer's drive electronics.

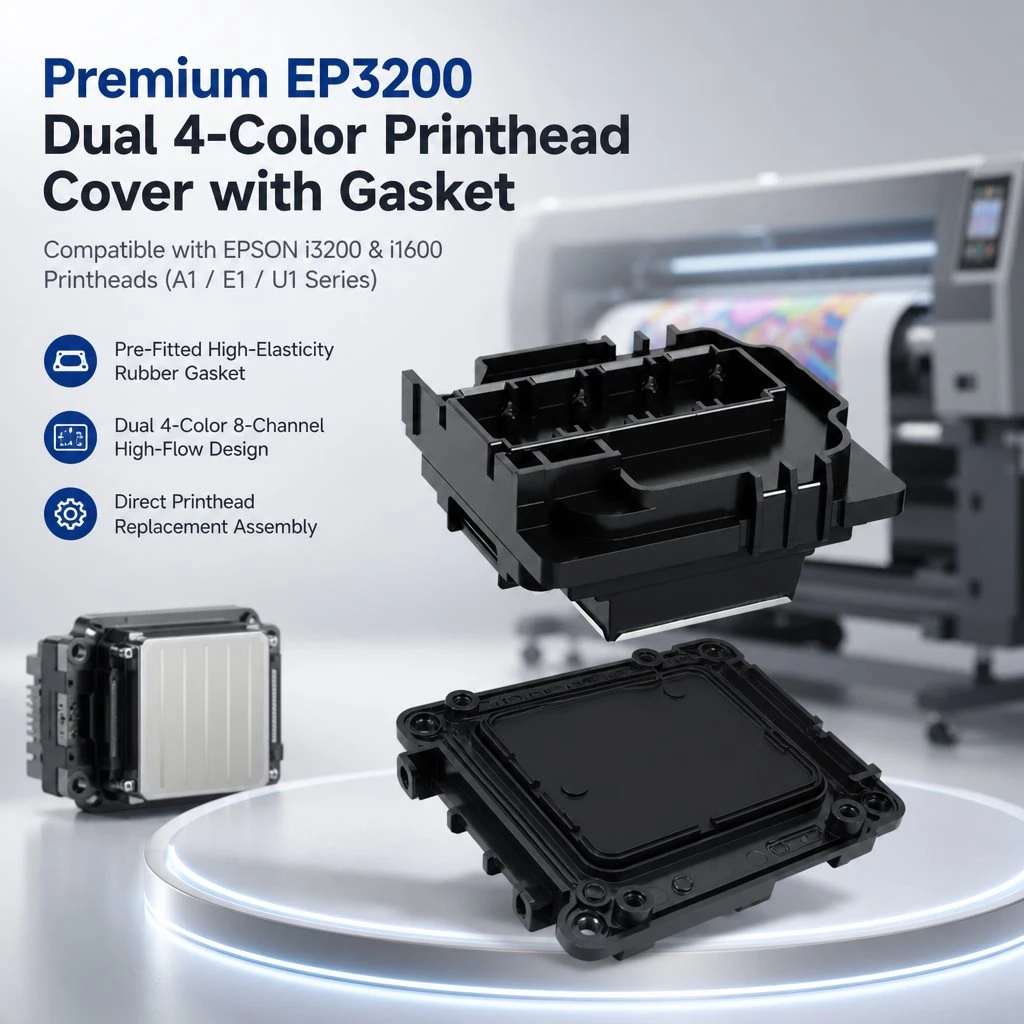

The Engineered Solution: Ocbestjet Pre-Assembled Dual 4-Color i3200/i1600 Manifold Cover with Gasket

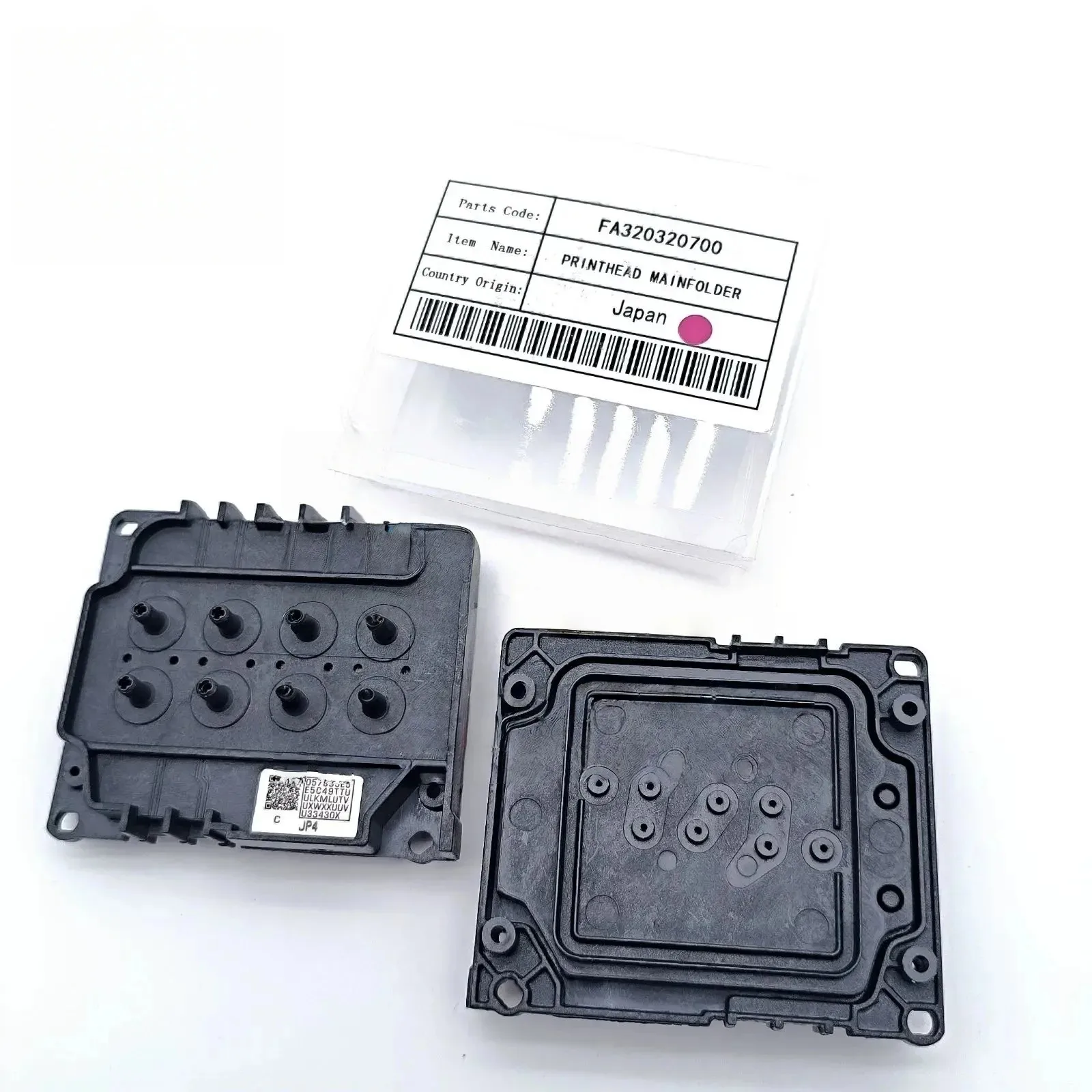

Instead of scrapping an otherwise fully functional $1,000 printhead core, Ocbestjet provides the Heavy-Duty Pre-Assembled Dual 4-Color (8-Channel) Printhead Manifold Cover Assembly, complete with an industrial-grade Fluoro-Rubber Sealing Gasket and built-in stainless micro-filters.
1. Precision-Molded Fluoro-Rubber Sealing Gasket (Pre-Installed)
Unlike low-grade generic rubber that swells, hardens, or dissolves in eco-solvent or UV inks, our specialized fluoro-elastomer gasket maintains elasticity under continuous chemical immersion and thermal cycling, guaranteeing a 100% hermetic seal between the manifold and the ceramic piezo chip.
2. Reinforced Impact-Resistant Ink Nipples
The 8 ink connection posts feature thickened base geometry and radius fillets, eliminating stress concentration points and preventing snapping or cracking during routine damper maintenance.
3. Dual-Layer Stainless Steel Micro-Mesh Filters
Each of the 8 ink channels incorporates an ultrasonic-welded stainless steel filter mesh, providing a final defense line that intercepts dust, dried ink skins, or micro-debris before they can reach the microscopic nozzle chambers.
Customer Application Scenarios
Scenario A: Commercial DTF Garment Printing Facility
Equipment: 60cm High-Speed DTF Printer (Dual Epson i3200-A1 Heads)
Problem: White ink channel was suffering from intermittent ink starvation and air bubbling due to a cracked manifold neck caused by tight damper replacement.
Solution & Value: Replaced the damaged top assembly with the Ocbestjet Dual 4-Color Manifold Cover with Gasket. Restored perfect vacuum suction and continuous white ink density in under 15 minutes, avoiding $950+ in replacement head expenses and preventing production downtime.
Scenario B: Digital Printer Repair & Spare Parts Depot
Equipment: Refurbishing client trade-in Epson i3200-E1 (Eco-Solvent) and i3200-U1 (UV) Printheads
Problem: Incoming printheads had solvent-eroded gaskets and loose damper nipples causing severe ink pooling.
Solution & Value: Standardized on Ocbestjet pre-assembled i3200 covers as their core refurbishing kit. Successfully restored 98% of leaking
printheads to factory pressure standards, turning scrap printheads into high-margin certified refurbished assets.
Product Specifications Table
| Parameter | Technical Details |
|---|---|
| Product Name | Dual 4-Color Printhead Manifold Cover with Gasket Assembly |
| Applicable Models | Epson i3200-A1 / i3200-E1 / i3200-U1, i1600-A1 / E1 / U1, 4720 (EPS3200) |
| Channel Layout | Dual 4-Color (8-Channel, 4 Inlets per Row) |
| Gasket Specification | Pre-assembled Custom Fluoro-Rubber / Silicone Seal |
| Filter Mesh | Integrated Stainless Steel Anti-Clog Filter Screen |
| Chemical Resistance | Water-based, Dye Sublimation, DTF, Eco-Solvent, UV LED Inks |
| Packaging | Individual Anti-Static Protective Sealed Bag |
| Warranty | 1:1 Replacement Warranty for any dimensional or sealing defect |
Step-by-Step Installation Tips for Technicians
Clean Contact Surface: Carefully remove the old manifold and clean any residual ink or dried debris from the printhead piezo base using lint-free swabs and cleaning solution.
Align Gasket Channels: Ensure the rubber gasket is securely seated in the perimeter groove without twists or wrinkles.
Even Torque Fastening: Tighten mounting screws in a diagonal cross-pattern with gentle, uniform torque to prevent overtightening or warping the plastic casing.
Inspect Damper Connection: Gently connect new ink dampers, ensuring a snug, air-free seal.
Save Your Printheads & Protect Your Printers Today
